Understanding Kepler Power Attribution

This guide explains how Kepler measures and attributes power consumption to processes, containers, VMs, and pods running on your system.

How Power Attribution Works

The Big Picture

Modern systems lack per-workload energy metering, providing only aggregate power consumption at the hardware level. Kepler addresses this attribution challenge through proportional distribution based on resource utilization:

Hardware Energy Collection - Intel RAPL sensors provide cumulative energy counters at package, core, DRAM, and uncore levels
System Activity Analysis - CPU utilization metrics from /proc/stat determine the ratio of active vs idle system operation
Power Domain Separation - Total energy is split into active power (proportional to workload activity) and idle power (baseline consumption)
Proportional Attribution - Active power is distributed to workloads based on their CPU time consumption ratios

Core Philosophy

Kepler implements a CPU-time-proportional energy attribution model that distributes hardware-measured energy consumption to individual workloads based on their computational resource usage patterns.

The fundamental principle recognizes that system power consumption has two distinct components:

Active Power: Energy consumed by computational work, proportional to CPU utilization and scalable with workload activity
Idle Power: Fixed baseline energy for maintaining system operation, including memory refresh, clock distribution, and idle core power states

Attribution Formula

All workload types use the same proportional attribution formula:

Workload Power = (Workload CPU Time Δ / Node CPU Time Δ) × Active Power

This ensures energy conservation - the sum of attributed power remains proportional to measured hardware consumption while maintaining fairness based on actual resource utilization.

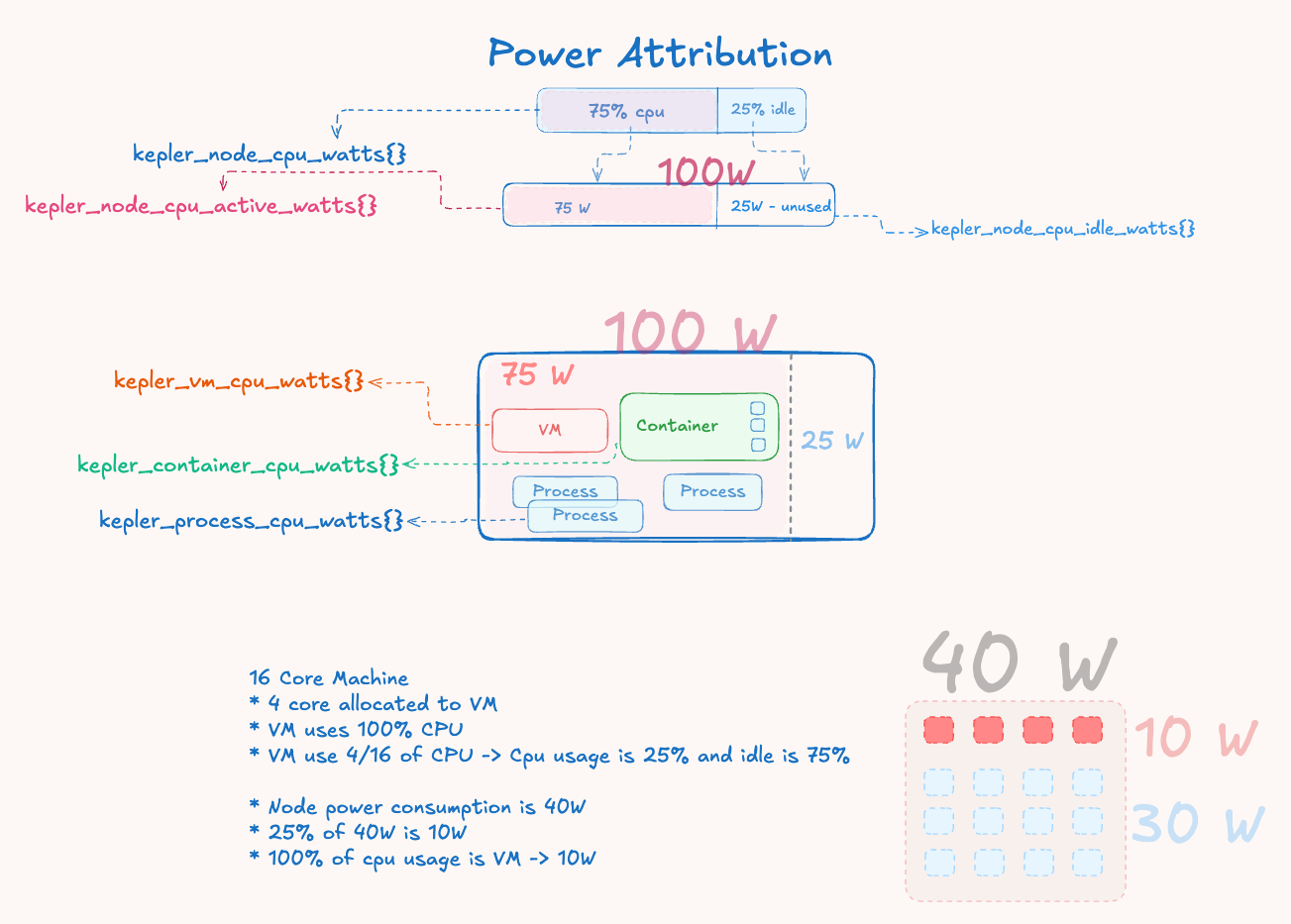

Power Attribution Diagram

Figure 1: Power attribution flow showing how total measured power is decomposed into active and idle components, with active power distributed proportionally based on workload CPU time deltas.

Understanding Energy vs Power

Energy: Measured in microjoules (μJ) as cumulative counters from hardware
Power: Calculated as rate in microwatts (μW) using Power = ΔEnergy / Δtime

Energy Zones

Hardware energy is read from different zones:

Package: CPU package-level energy consumption
Core: Individual CPU core energy
DRAM: Memory subsystem energy
Uncore: Integrated graphics and other uncore components
PSys: Platform-level energy (most comprehensive when available)

Attribution Examples

Example 1: Basic Power Split

System State:

Hardware reports: 40W total system power
Node CPU usage: 25% utilization ratio
Power split: 40W × 25% = 10W active, 30W idle

Workload Attribution: If a container used 20% of total node CPU time during the measurement interval:

Container power = (20% CPU usage) × 10W active = 2W

Example 2: Multi-Workload Scenario

System State:

Total power: 60W
CPU usage ratio: 33.3% (1/3)
Active power: 20W, Idle power: 40W
Node total CPU time: 1000ms

Process-Level CPU Usage:

Process 1 (standalone): 100ms CPU time
Process 2 (in container-A): 80ms CPU time
Process 3 (in container-A): 70ms CPU time
Process 4 (in container-B): 60ms CPU time
Process 5 (QEMU hypervisor): 200ms CPU time
Process 6 (in container-C, pod-X): 90ms CPU time
Process 7 (in container-D, pod-X): 110ms CPU time

Hierarchical CPU Time Aggregation:

Container-A CPU time: 80ms + 70ms = 150ms
Container-B CPU time: 60ms
Container-C CPU time: 90ms (part of pod-X)
Container-D CPU time: 110ms (part of pod-X)
Pod-X CPU time: 90ms + 110ms = 200ms
VM CPU time: 200ms (QEMU hypervisor process)

Independent Power Attribution (each from node active power):

Process 1: (100ms / 1000ms) × 20W = 2W
Container-A: (150ms / 1000ms) × 20W = 3W
Container-B: (60ms / 1000ms) × 20W = 1.2W
Pod-X: (200ms / 1000ms) × 20W = 4W
VM: (200ms / 1000ms) × 20W = 4W

Note: Each workload type calculates power independently from node active power based on its own CPU time, not by inheriting from constituent workloads.

Example 3: Container with Multiple Processes

Container "web-server":

Process 1 (nginx): 100ms CPU time
Process 2 (worker): 50ms CPU time
Container total: 150ms CPU time

If node total CPU time is 1000ms:

Container CPU ratio: 150ms / 1000ms = 15%
Container power: 15% × active power

Example 4: Pod with Multiple Containers

Pod "frontend":

Container 1 (nginx): 200ms CPU time
Container 2 (sidecar): 50ms CPU time
Pod total: 250ms CPU time

If node total CPU time is 1000ms:

Pod CPU ratio: 250ms / 1000ms = 25%
Pod power: 25% × active power

Limitations and Considerations

When CPU Attribution Works Well

CPU-bound workloads with similar instruction mixes
Steady-state workloads without significant frequency scaling
Relative comparisons between similar workload types
Trend analysis over longer time periods

When to Exercise Caution

Mixed workload environments with varying compute vs I/O patterns
High-performance computing workloads using specialized instructions
Absolute power budgeting decisions based solely on Kepler metrics
Fine-grained optimization requiring precise per-process power measurement

Workload-Specific Characteristics

Compute vs Memory-Bound Workloads

Example Scenario:
- Process A: 50% CPU, compute-intensive (high frequency, active execution)
- Process B: 50% CPU, memory-bound (frequent stalls, lower frequency)

Current Attribution: Both receive equal power
Reality: Process A likely consumes 2-3x more power

CPU Power States Impact

Modern CPUs implement sophisticated power management that affects attribution accuracy:

C-States (CPU Sleep States): Different sleep behaviors affect power consumption
P-States (Performance States): Dynamic frequency scaling affects power per CPU cycle
Instruction-Level Variations: Vector instructions consume more power than scalar operations

Beyond CPU Attribution

Memory and I/O Considerations

DRAM Power: Memory-intensive workloads consume more DRAM power
Storage I/O: Triggers storage controller and device power
Network I/O: Consumes network interface and PCIe power
GPU Workloads: Integrated graphics power not captured by CPU metrics

Key Metrics

kepler_node_cpu_watts{}: Total node power consumption
kepler_process_cpu_watts{}: Individual process power
kepler_container_cpu_watts{}: Container-level power
kepler_vm_cpu_watts{}: Virtual machine power
kepler_pod_cpu_watts{}: Kubernetes pod power

Conclusion

Kepler's power attribution system provides practical, proportional distribution of hardware energy consumption to individual workloads. While CPU-time-based attribution has inherent limitations due to modern CPU complexity, it offers a good balance between accuracy, simplicity, and performance overhead for most monitoring and optimization use cases.

Understanding both the capabilities and limitations helps users make informed decisions about when and how to rely on Kepler's power attribution metrics.
